PVC-U
Soil Waste Vest System
FLOWTECH UPVC DRAINAGE
SYSTEM

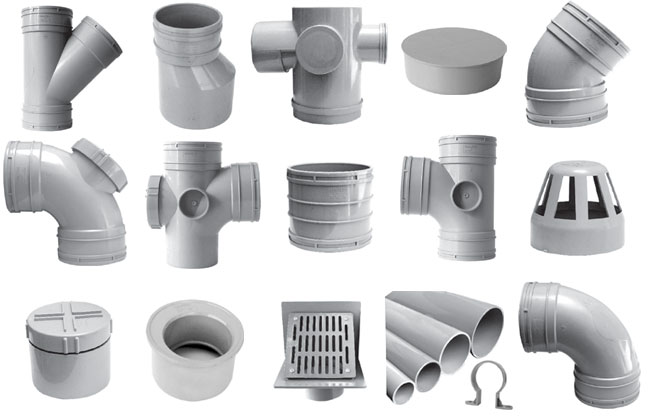

Tetraplast with the b rand name of Flowtech offers a
comprehensive rnage of UPVC pipes and fittings for
waste, soil and drainage applications to cater the
growing needs of the building construction industry.
Standards
Tetraplast UPVC pipes and fittings are manufactured as
per the following standards, BS EN 1329-1: 2000 This
standard suprecedes BS 4514 : 1993, BS 5255 : 1989 and
ISO 3633.
Kitemark
Flowtech UPVC Drainage Fittings are available with the
prestigious Kitemark license, which is awarded by the
British Standards Institute (BSI). According to survey
conducted by a leading research company, GFK NOP on
behalf of BSI Product Services.
|
85% |
73% |
88% |
|
Think a products
with a kitemark has a higher quality than
other products |
Are more willing
to recommend a product with
a Kitemark than others |
Have more trust
in a product with a Kitemark than other
products |
Advantages of
Flowtech UPVC Drainage Systems
-
Light
Weigh: Hence transport and handling is simple and
convenient.
-
Chemical Resistance: Excellent chemical resistance
of UPVC to acids, alkalies, and oxidizing reducing
agents makes it suitable for all applications.
-
High
Flow Rate: The smooth internal bore gives excellent
flow properties which remain constant throughout the
life of the system.
-
Non-inflammable: UPVC does not support combustion
and is self-extinguishing.
-
Non-conductive: UPVC is a non-conductor and hence
not attacked by galvanic or electrolytic action.
-
Weather Resistance: Specially blended UV stabilized
compound offers an excellent outdoor
weathering performance. High durability.
-
Easy
Installation: Tough, impact-resistant and easy to
install.
-
Corrosion Resistance: UPVC is non-corrosive and
hence constant contact with water does not
deteriorate the material.
-
Aesthetic Superiority: UPVC is aesthetically far
superior to conventional systems.
Size and Dimensions
Flowtech UPVC pipes & fittings are available in sizes
from 50mm to 200mm Flowtech drainage pipes are
manufactured as per following dimensions.
|
Normal Size
DN/OD/(mm) |
Mean Outside
Dia (mm) |
Wall
Thickness (mm) |
Inner Dia
(mm) |
| |
Min |
Max |
Min |
Max |
Min |
Max |
|
50mm |
50.0 |
50.2 |
3.0 |
3.5 |
46.5 |
50.0 |
|
56mm |
55.8 |
56.1 |
3.0 |
3.5 |
52.3 |
55.8 |
|
75mm |
75.0 |
75.3 |
3.0 |
3.5 |
71.5 |
75.0 |
|
82mm |
82.0 |
82.3 |
3.0 |
3.5 |
78.5 |
82.0 |
|
110mm |
110.0 |
110.3 |
3.2 |
3.8 |
106.2 |
110.0 |
|
160mm |
160.0 |
160.4 |
3.2 |
3.8 |
156.2 |
157.2 |
|
200mm |
200.0 |
200.5 |
3.9 |
4.5 |
196.6 |
200.0 |
|
